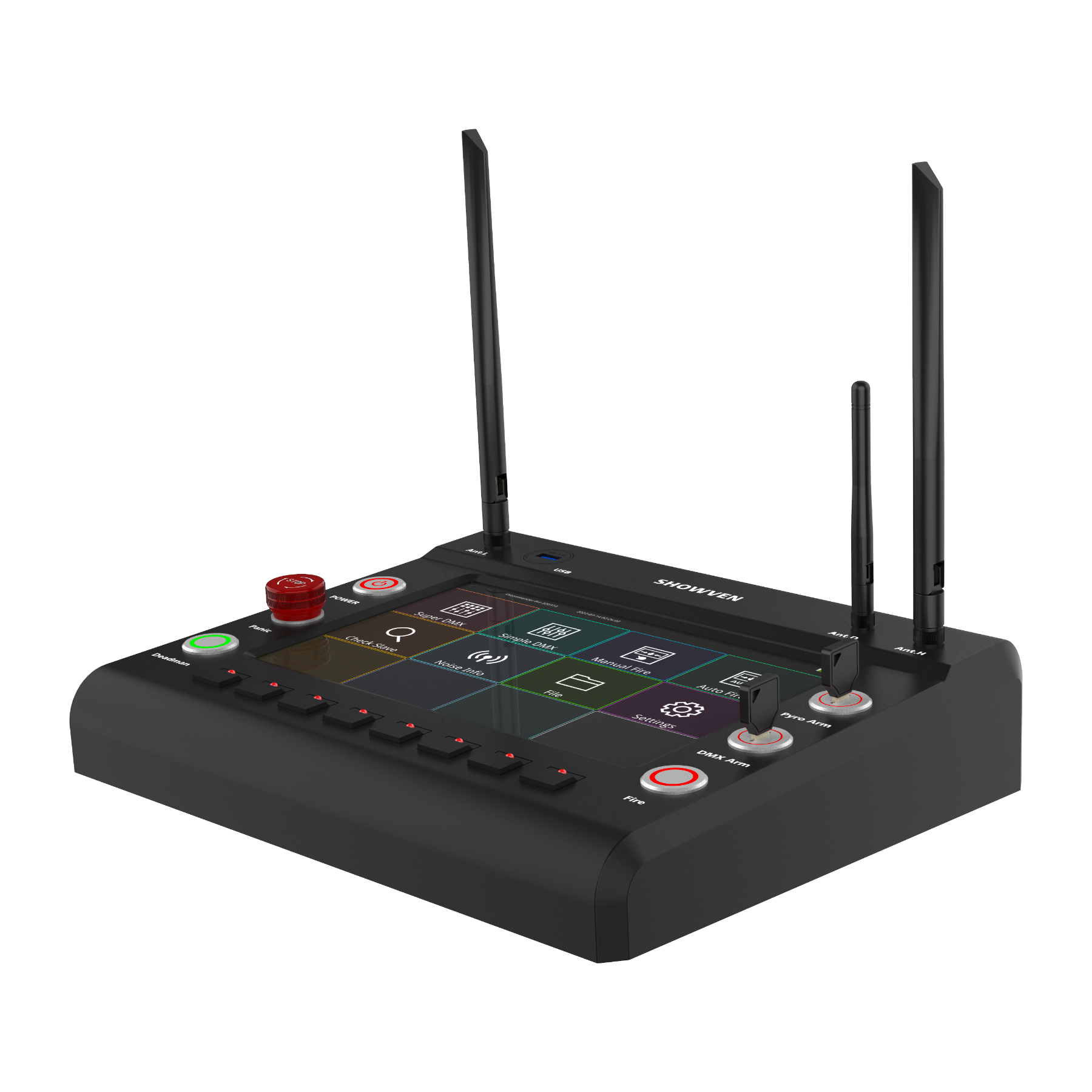

FX Commander
The FXcommander is a professional and intuitive control system designed for control for the programming, synchronization and security of professional special effects and fireworks shows. With this powerful software, anyone can quickly and efficiently program large scale shows with special effects and fireworks in sync with the music.
Safety features:
- Pyro arm switch, DMX arm switch, Deadman button ensure zero false trigger
- Emergency stop at any time
- Safety channel specially designed for SFX device
- Dual antenna, ensure fast, stable and reliable PYRO signal transmission
- RDMX communication with SHOWVEN device, device status real time monitoring
- 8 keyboard shortcut key, can set to tap or lock mode, ensure quick and reliable trigger
Intuitive Programming and Operation:

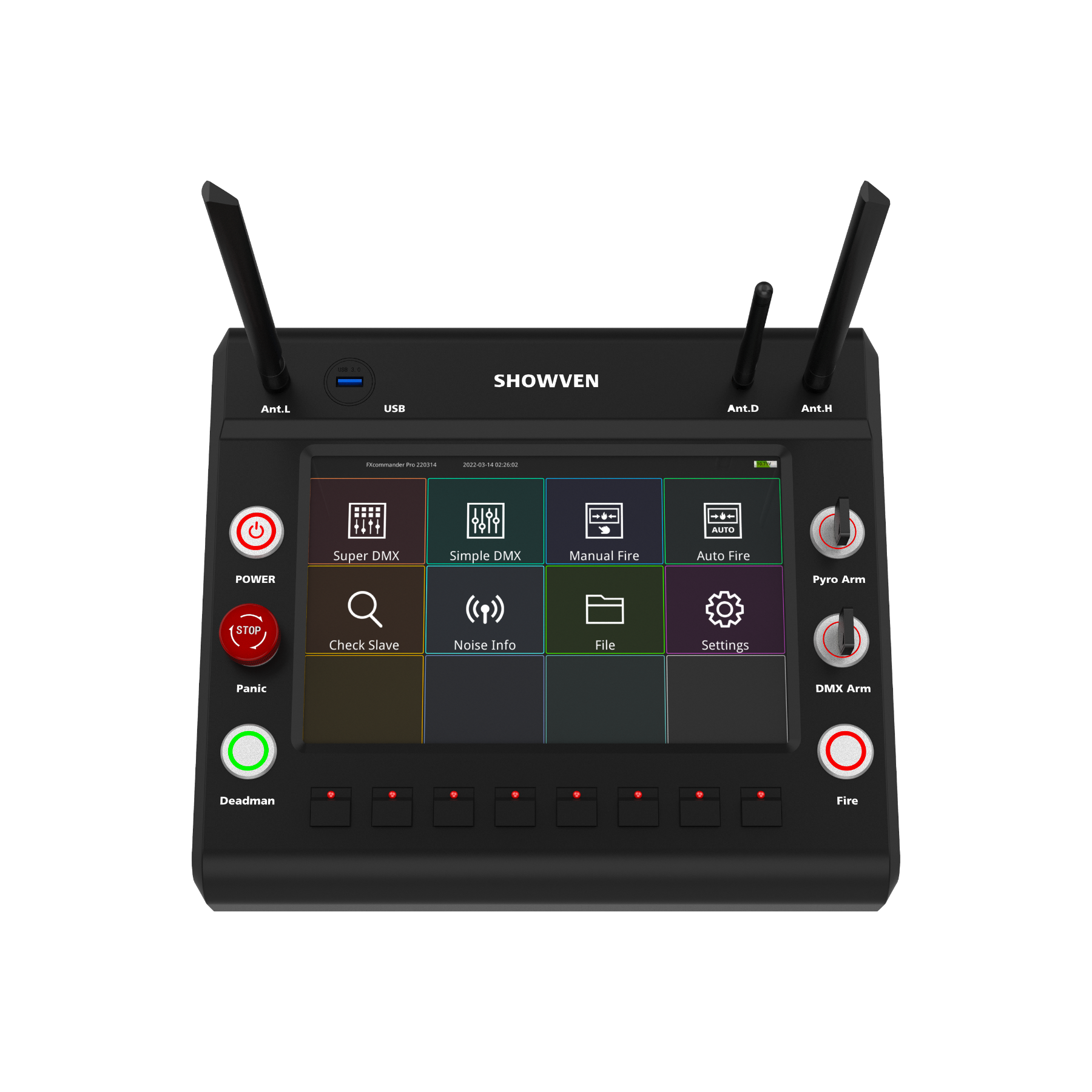

- 10.1″ capacitance touch screen
- Presetting device and effect lib for fast programming
- 5 preset effect rules for easier programming
- Easy and fast improvisation programming
- Convenient manual pyro firing edit
- Demonstration function for programmed show
Powerfull performance:
- Scene switch, max. support 4 scenes, each scene support 128 cues
- USB port support software update, show file update and backup, device lib update etc.
- Variety interfaces: 3-pin and 5-pin DMX, MIDI input, LTC input, Audio Output, USB
- Wireless:2.4GHz wireless DMX, dual band wireless PYRO
- Battery driven with built in battery
- Windows FXcommander_Editor Software can generate project list table, minimize operator’s workload.
Powerfull performance:
- MIDI, LTC receiver, support SMPTE time codeWindows
- Dual-core processor, smooth operation
- Windows FXcommander_Editor Software ensure precise programming- Dual-core processor, smooth operation
- Built-in audio signal output, achieve accurate synchronization between music and effects
Personalized Settings:
- Multi language optional
- Unlimited self-editable colors
- User defined CUE icon
Product Specifications:
- INPUT: AC 220V/110V, 50/60 Hz
- WORK POWER: 20W
- Casing material: Aluminium
- Battery Powered: Yes
- Wireless Function:2.4G wireless DMX Dual band wireless PYRO

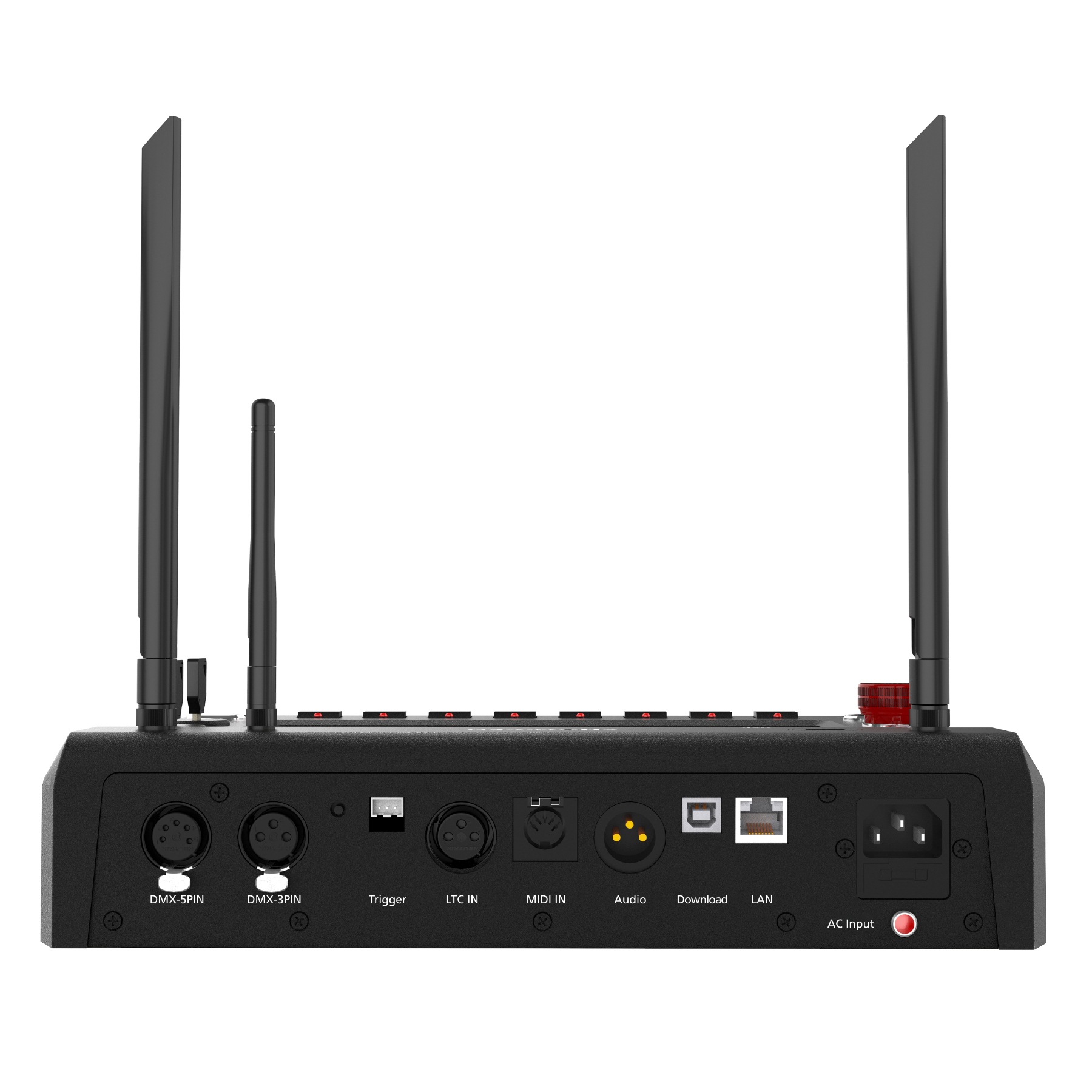

- Interface: 1*USB, 1*USB Download, 1*LAN, 1* Audio Output, 1*MIDI IN, 1*LTC IN, 1* 3-PIN DMX OUT, 1*5-PIN DMX OUT, 1*External Trigger
Product Dimensions:
- Dimension: 314×270×65mm
- Weight: 4kg
