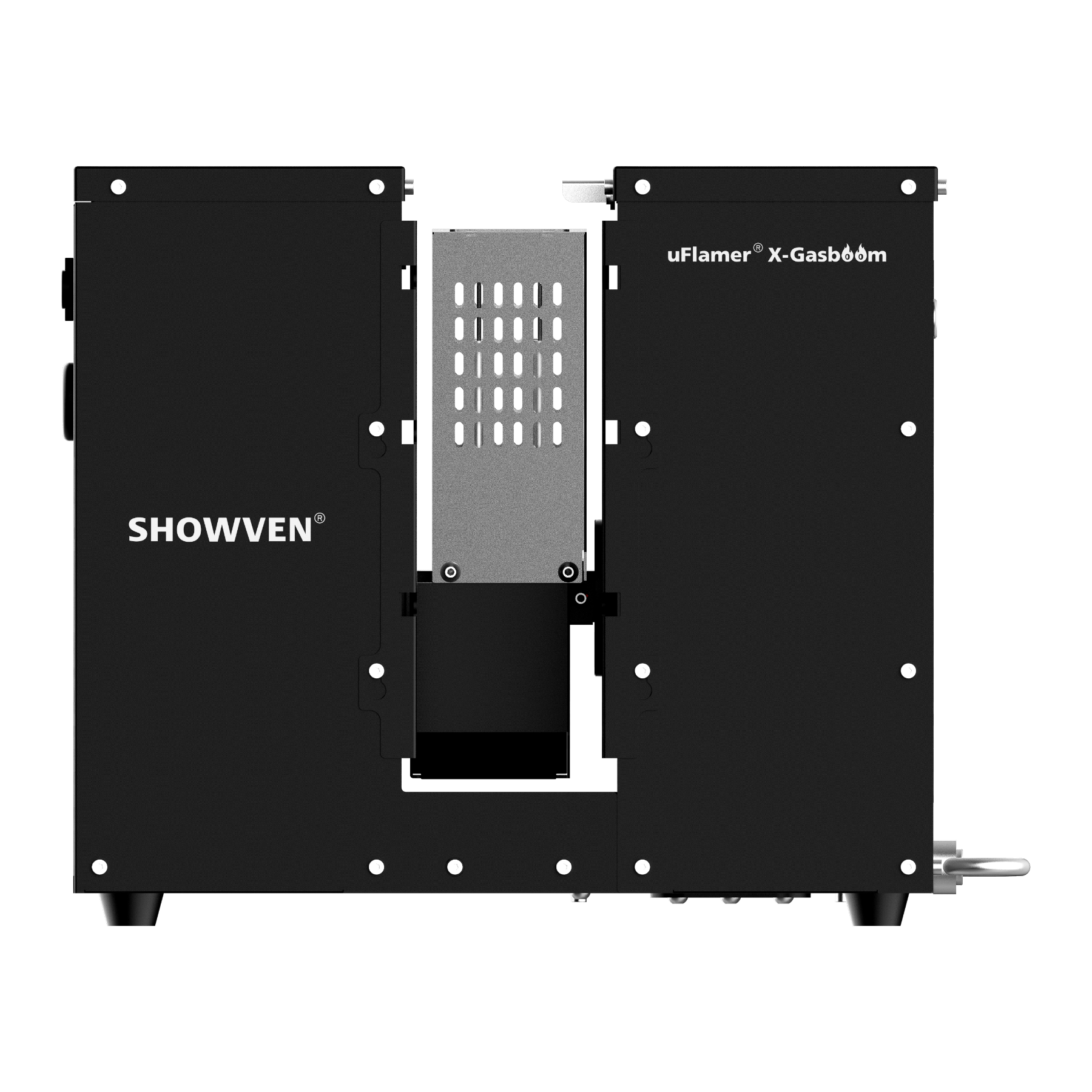

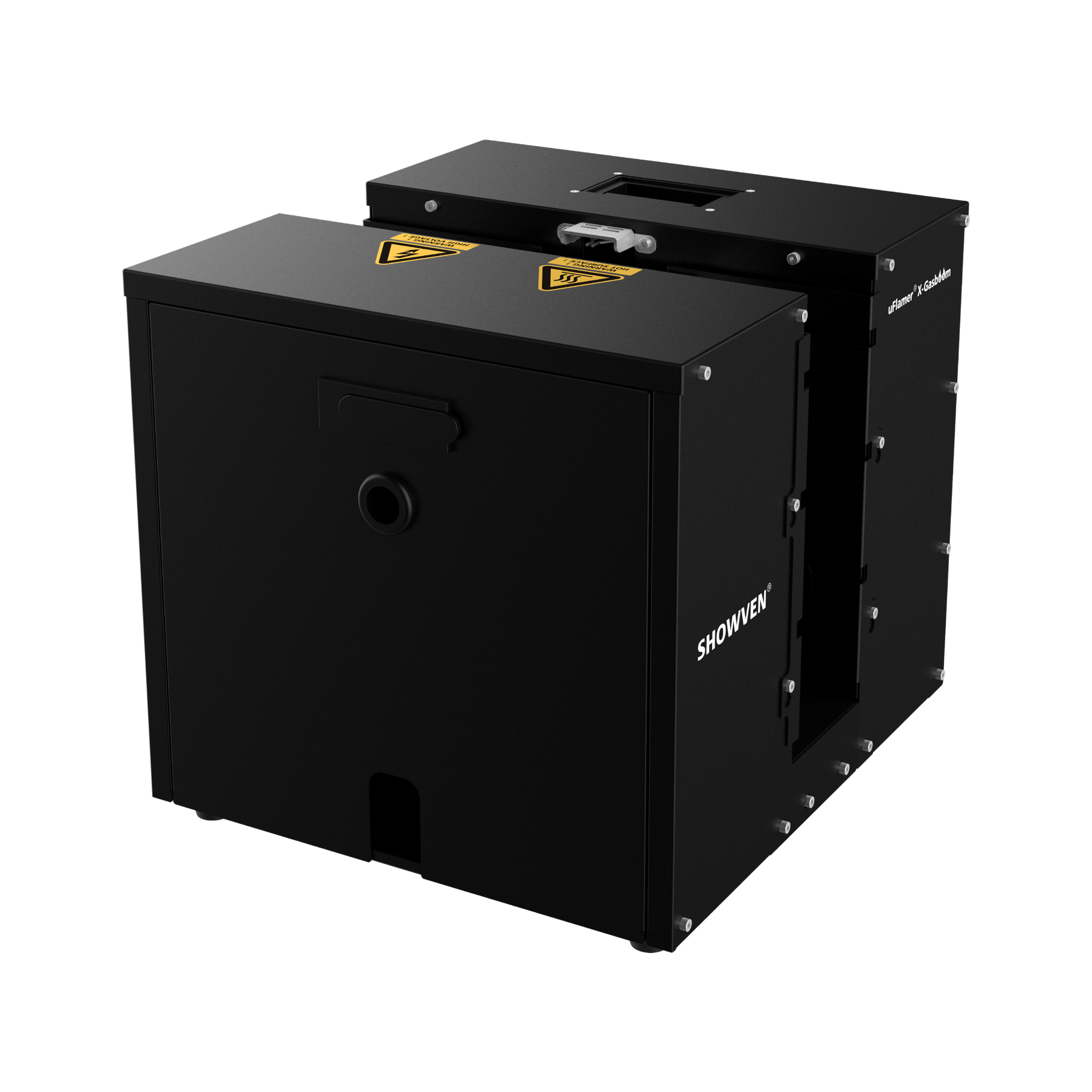

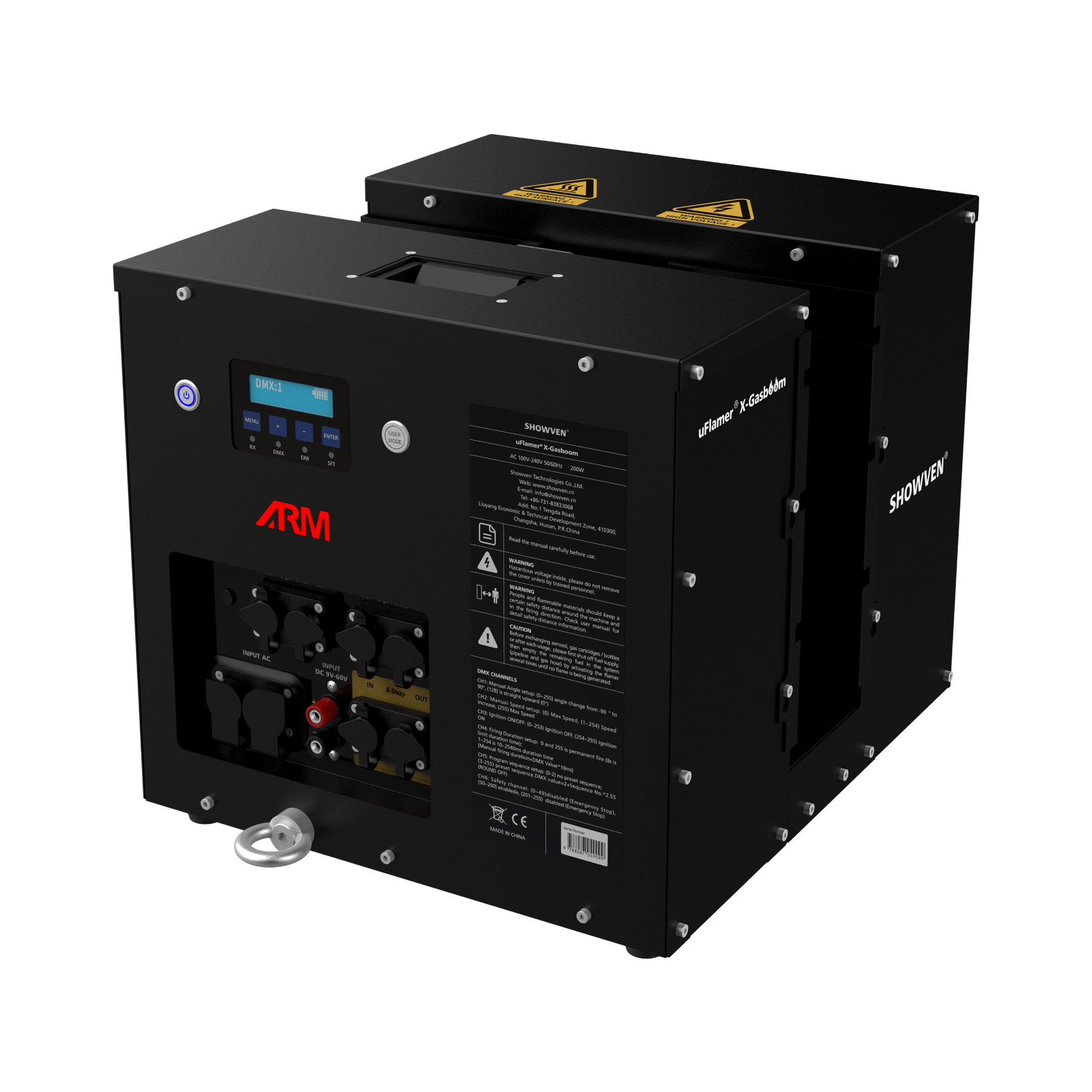

uFlamer X-Gasboom
The uFlamer X-Gasboom is the first gas flamer with 180° waving angles, building on the safety features of the uFlamer Gasboom. These include a 0.1-second responsive flame monitoring system, a cascadable power cut-off E-stop connector, dual high voltage electronic igniters, a safety lock, dual magnetic valves, a shut-off valve, and an ARM warning light. It offers five optional nozzle types and has positions for two or four built-in gas cartridges. The flame effect height ranges from 2 to 8 meters, making it suitable for versatile applications in both indoor and outdoor events.
- Fluid driven vertical flamer original designed by SHOWVEN
- Flame up to 8-10m (no wind)
- Compact pumping system design
- Stainless steel housing, reliable and durable
- IPX3 waterproof design
- Built-in 5L fuel tank, equals to 83s effects; Support external tank
- No external hose connection needed, easier for setup
- Safety lock with switchable test mode
- Tilt protection (over 45°)
- Intelligent control system
- Standard DMX control, compatible with all DMX consoles
- Machine running status monitoring with SHOWVEN host controller
- Built-in battery design (Optional, and customer can buy battery locally)
Product Specifications:
- Input and Power: 100-240VAC, 50/60 Hz 200W
- Housing Material: 304 stainless steel
- Effect angle: 180°
- Flame Height: 2-8m (depending on nozzle size)
- E-Stop Interface
- Dual Magnetic Valves
- up to 0.1s responsive Flame Monitoring
- Interface: NEUTRIK POWERCON TRUE1 IN/OUT; Waterproof 3-pin and 5-pin XLR IN/OUT
- Control: DMX 512, 9-60V voltage input Wireless, with Wireless DMX Receiver (5-PIN DMX IN with DC5V power supply)
- Ignition: High Voltage Electron Ignition * 2
- Built-in Battery Design
- Can be used in heavy rain
- Firing Duration: 0.1-30s
- Fuel: LPG propane or butane gas, gas cartridges bottle, aerosol cartridges
Cartridge Holder: Twin cartridge holder with 2 shut-off valves and 2 non-return valves; Quadruple cartridge holder with 4 shut-off valves and 4 non-return valves (optional)
- Micro Filter
Product Dimensions:
- Dimension: 400 x 360 x 350mm
- Weight: 20kg
